iQMS362i 16.5" Dust Control Masonry Saw

Sale price$3,059.00
Dealer Only Item

Product Description:
Introducing the iQMS362i, the world's first 16.5" masonry saw with integrated dust collection. Revolutionize the way you cut masonry materials with this innovative saw, designed to deliver unparalleled speed and precision in dry cutting.

Key Features:

  • Unmatched Cutting Efficiency: Cuts brick, pavers, stone, and veneer up to 40% faster than other saws in its class.

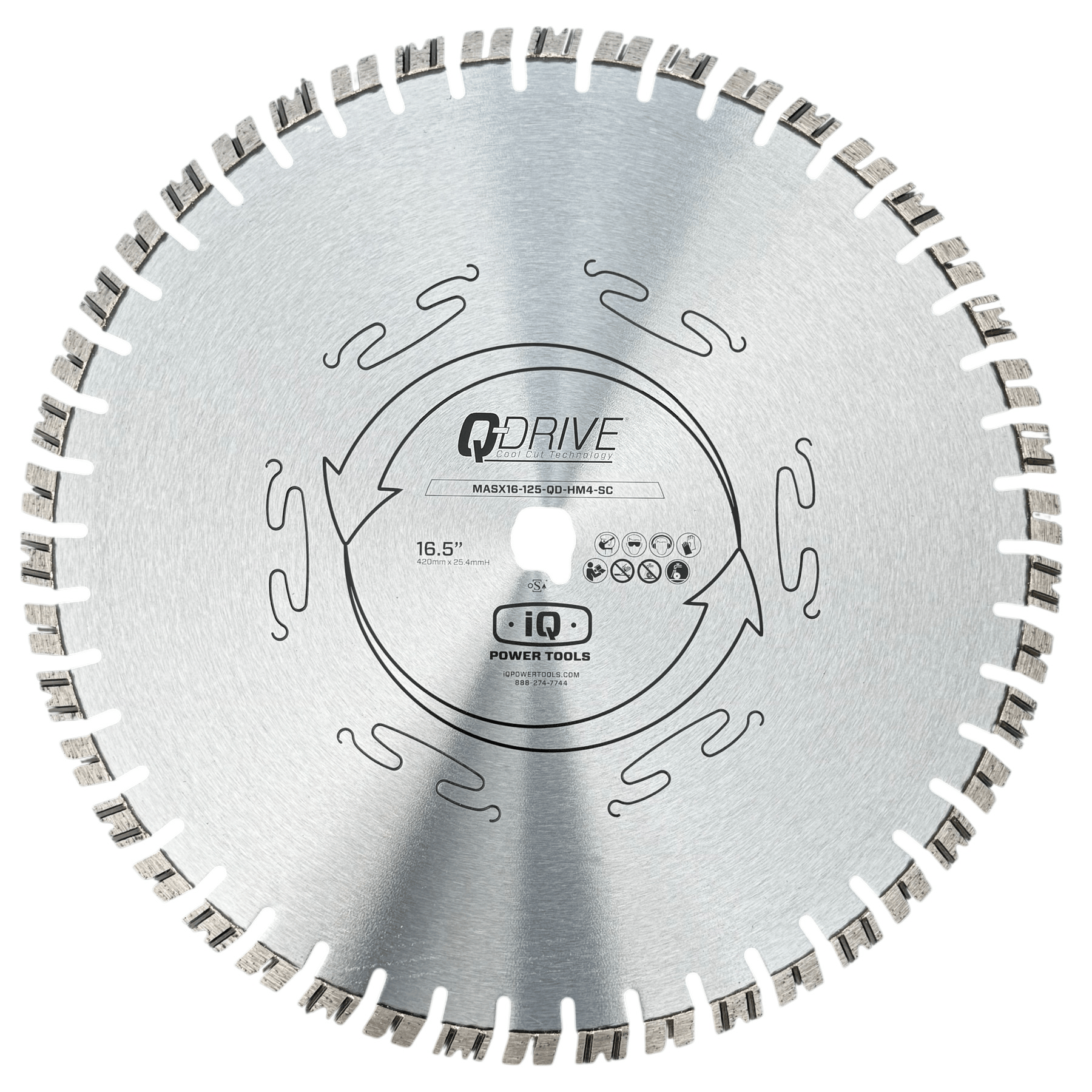

  • Innovative Q-Drive Blade: Our proprietary Q-Drive blade slices through a 60mm x 4" paver in just three seconds.
  • Extended Blade Capacity: The 16.5" blade offers a 5.5" depth and a full 24" length of cut, accommodating larger materials with ease.
  • Easy Transportation: High-flotation tires ensure smooth transport over various terrains.
  • Integrated Stand: Features a gas-shock powered lifting/lowering mechanism for enhanced stability and ease of use.
  • Standard Power Compatibility: Operates efficiently on standard 120V and 20 amps power supply.
  • OSHA Compliant: Meets safety standards, ensuring a safe working environment.
  • Effective Dust Collection: Captures hazardous silica dust, safeguarding the health of your workers.
  • Cooling Vac System: Maintains blade temperature for extended blade life.
  • Soft-Start Technology: Ensures smooth, uninterrupted operation with controlled initial power surge.

Product Benefits:

  • Easy to set up and use in any location.
  • Reduces cleanup time significantly on the job site.
  • Keeps you compliant with safety regulations.
  • Enhances the health and safety of workers by cutting dry.



    Videos

    iQMS362i 16.5" Dust Control Masonry Saw

    The iQMS362i is the ultimate dry-cut masonry saw, delivering unmatched precision and dust control with its powerful 16.5" Q-Drive blade. Designed for cutting concrete, pavers, and hard masonry materials, this saw is built for professionals who need clean, efficient cuts without the mess of water or slurry. Its integrated vacuum system captures up to 99.5% of dust, making it OSHA-compliant and jobsite-friendly. Built tough for heavy-duty use, it’s the go-to saw for masons, hardscapers, and contractors demanding top performance and cleanliness.

    Recommended Extension Cord
    25 ft / 12 gauge or 50 ft / 10 gauge

    Recommended Generator
    4500 watts

    U.S. Voltage

    120V

    Total System Amperage

    20 amps

    Saw Motor Amperage

    15 amps

    Vacuum Motor Amperage

    5 amps

    Blade Size

    16.5" Q-Drive

    Cutting Depth

    5.5"

    Cutting Length

    24"

    Dust Capacity

    40lbs

    Saw Weight

    150lbs

    Dimensions

    32"W x 40"H x 43"L

    Product Support

    Looking for technical documents, owner’s manuals, or product support? Please see the resources below for everything you need to keep your iQ Power Tool running at peak performance.

    White Papers

    Looking for OSHA documents on Silica testing and dust exposure? Click Here

    Live Demo

    Looking for a live-demo? Schedule one today and let us answer any questions you may have.
