iQ1550 Masonry Saw The King Cutter

وحدة إدارة المخزون: iQ1550-NA
السعر بعد الخصم$12,999.00
نفد من المخزون

Product Overview:
Elevate your cutting game with the Supreme Masonry Saw at 21.5". Designed for the modern professional contractor, this saw combines convenience, efficiency, and cutting-edge technology. Forget the mess and limitations of traditional wet cutting methods. This saw is your key to a faster, cleaner, and more profitable workflow.

Key Features:

  • Dry Cutting Technology: Experience the freedom of dry cutting with no need for water.
  • Built-In Dust Management: Equipped with an innovative dust management system to keep your workspace clean and safe.
  • Versatile Design: Ideal for a variety of masonry materials, offering precision and reliability.

Specifications:

  • Total Power Requirements: Voltage 240v 30AMP
  • Saw Motor: High-powered 230V, 4000 WATT motor
  • Vacuum Motor: Robust 3000 WATT motor ensures effective dust collection.
  • Cutting Capacity: Generous 20" cutting capacity for handling large materials.
  • Filtration System: Advanced 3-Stage HEPA filtration, capturing the finest dust particles.
  • Cut Height: Versatile 8" cut height for diverse masonry projects.
  • Dust Capacity: Large 75 LBS dust storage for uninterrupted work.
  • Total Weight: Sturdy build with a total weight of 380 LBS.
  • Dimensions: Compact footprint at 32" W X 67" H X 51" Length.
  • Portability Options: Easy to move with wheels, forklift, and crane mount options.

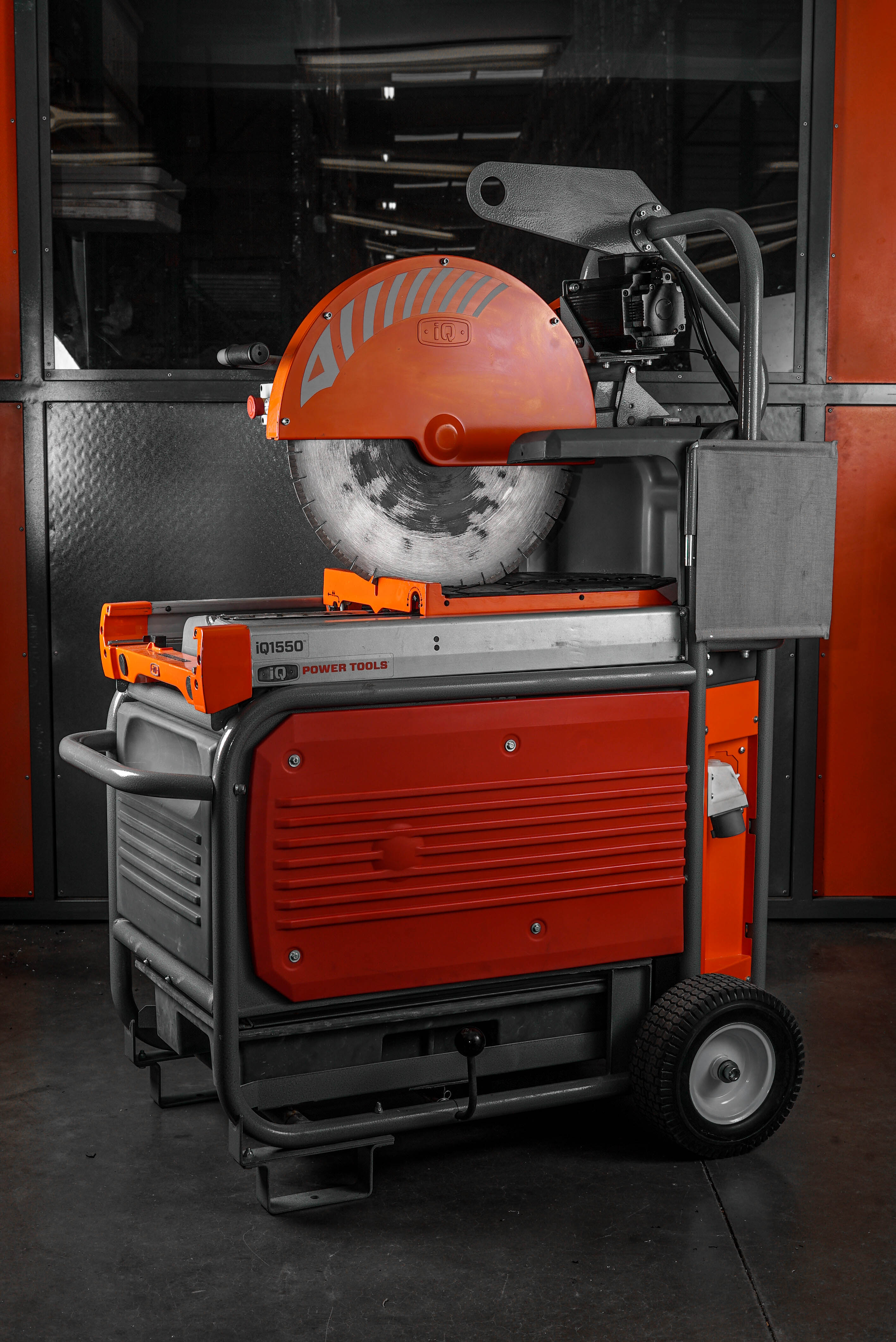

iQ1550 21.5" Heavy-Duty Masonry Saw ("The King Cutter")

The iQ1550 is iQ’s most powerful masonry saw yet—built to dominate large-scale commercial projects. Featuring a massive 21.5" blade, dual high-output motors, and 75 lbs of dust capacity, this beast can make clean, deep 8" cuts through CMU, brick, and natural stone without water. Its 3-stage HEPA filtration system ensures a dust-free environment, while 230V power delivers pro-level performance. The iQ1550 is ideal for block yards, precast facilities, and masons working on high-volume jobs.

Recommended Extension Cord
25 ft / 30-AMP Rated

Recommended Generator
9500 watts

U.S. Voltage

230V

Total System Amperage

30 amps

Saw Motor Amperage

4000 Watts

Vacuum Motor Amperage

3000 Watts

Blade Size

21.5" Q-Drive

Cutting Depth

8"

Cutting Length

20"

Dust Capacity

75lbs

Saw Weight

380lbs

Dimensions

32"W x 67"H x 51"L

Product Support

Looking for technical documents, owner’s manuals, or product support? Please see the resources below for everything you need to keep your iQ Power Tool running at peak performance.

Support Manuals

Operators Manual - Click Here

White Papers

Looking for OSHA documents on Silica testing and dust exposure? Click Here

Live Demo

Looking for a live-demo? Schedule one today and let us answer any questions you may have.
